ARTEC Performance

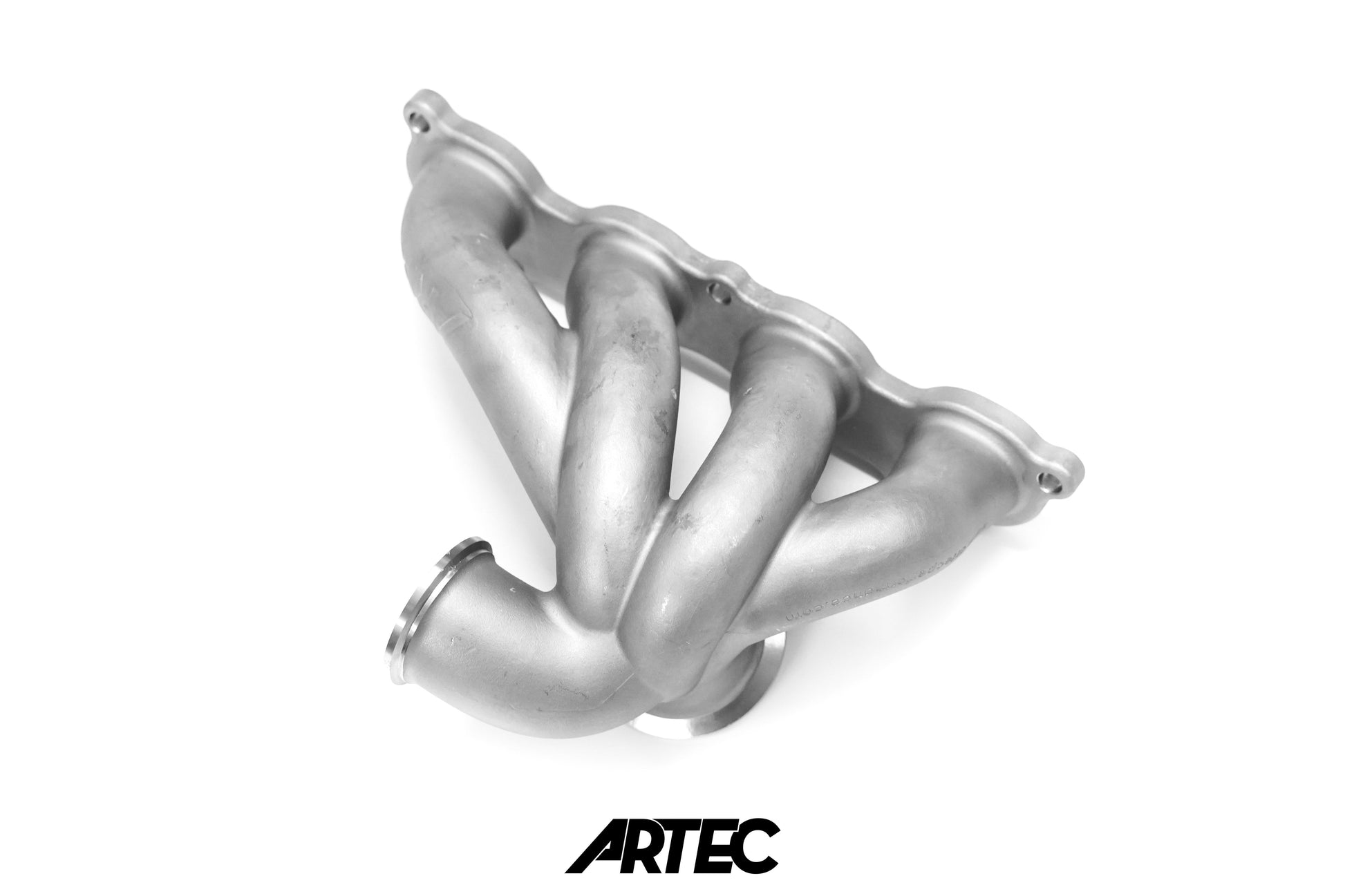

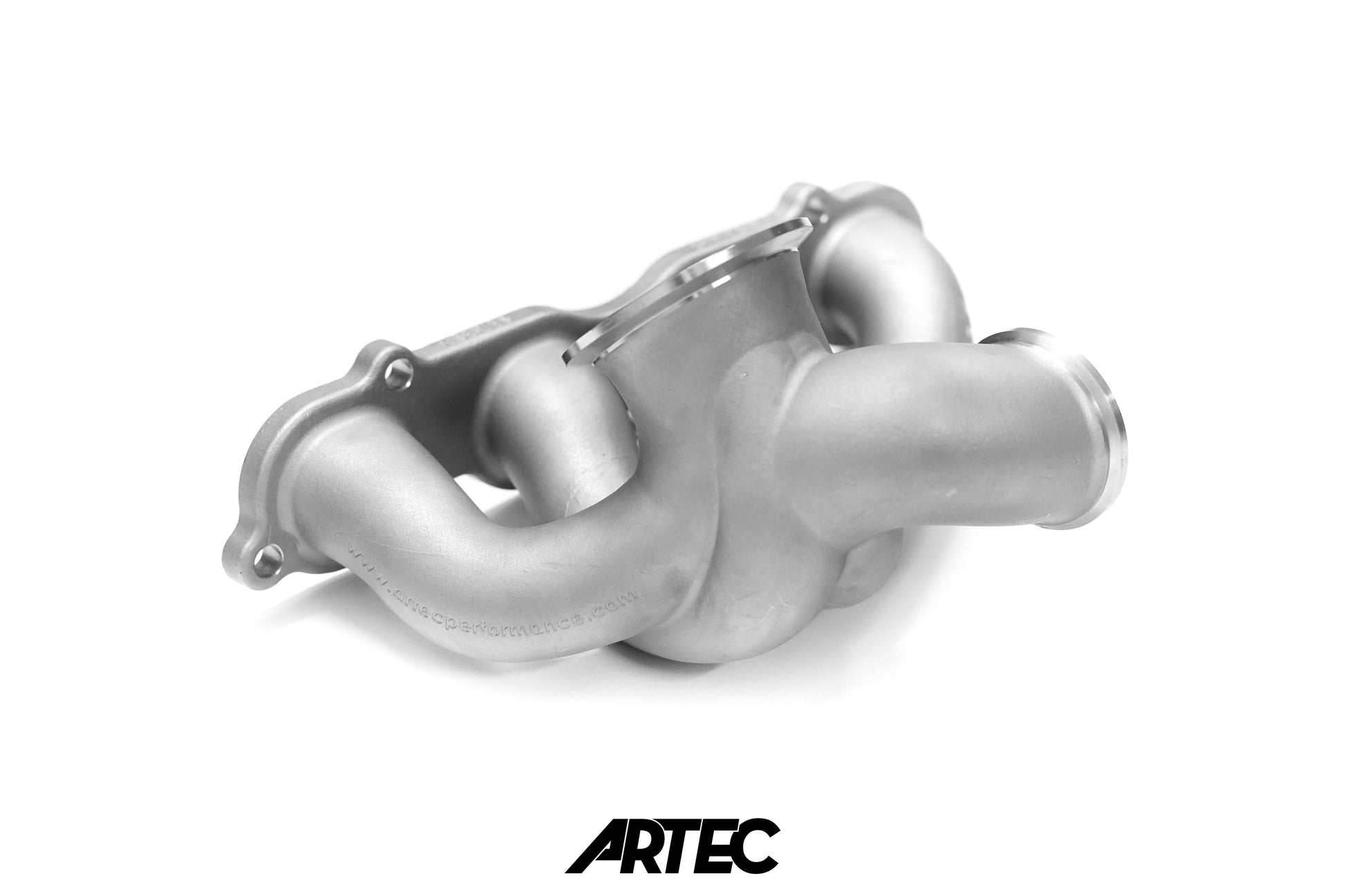

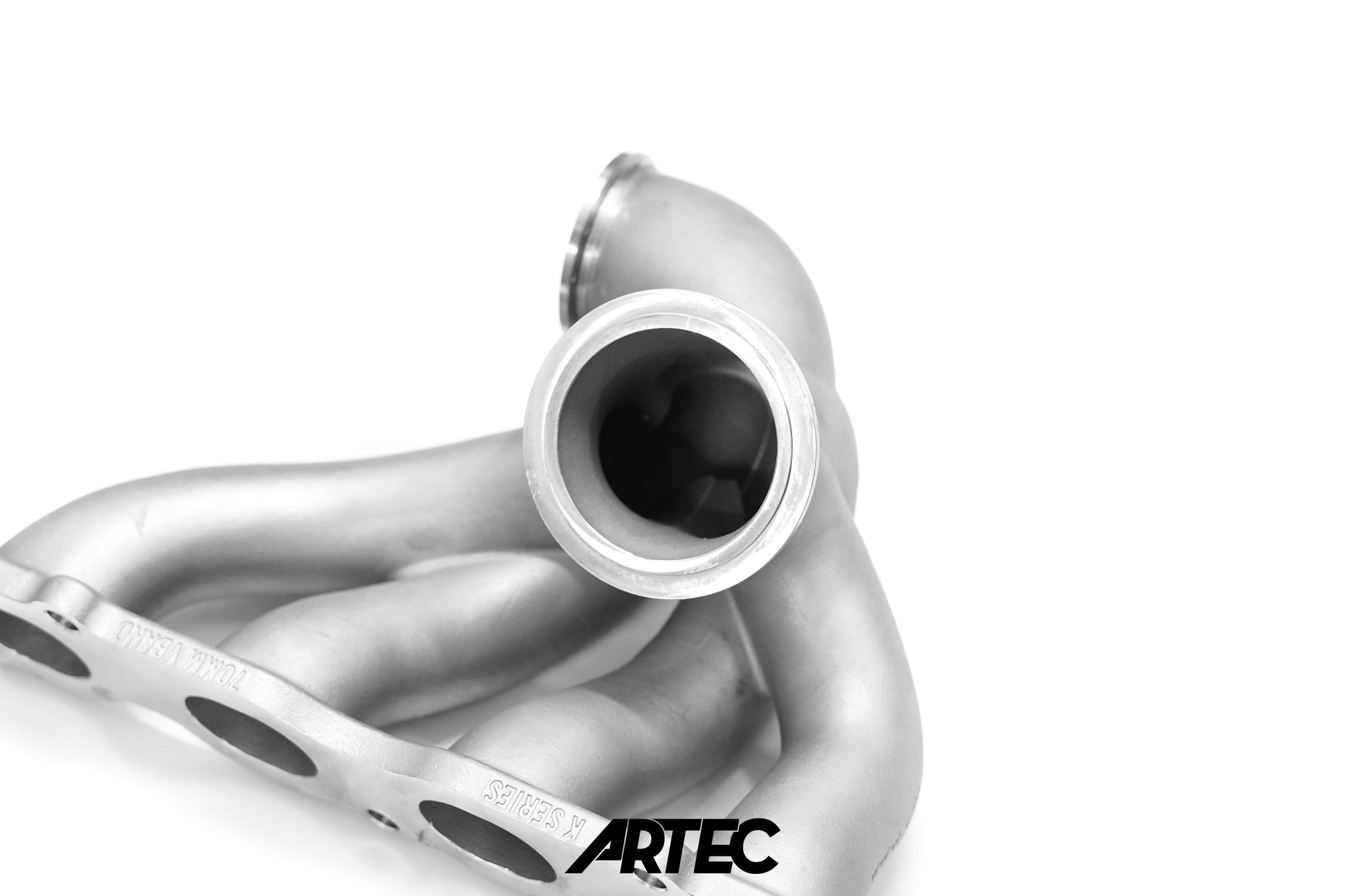

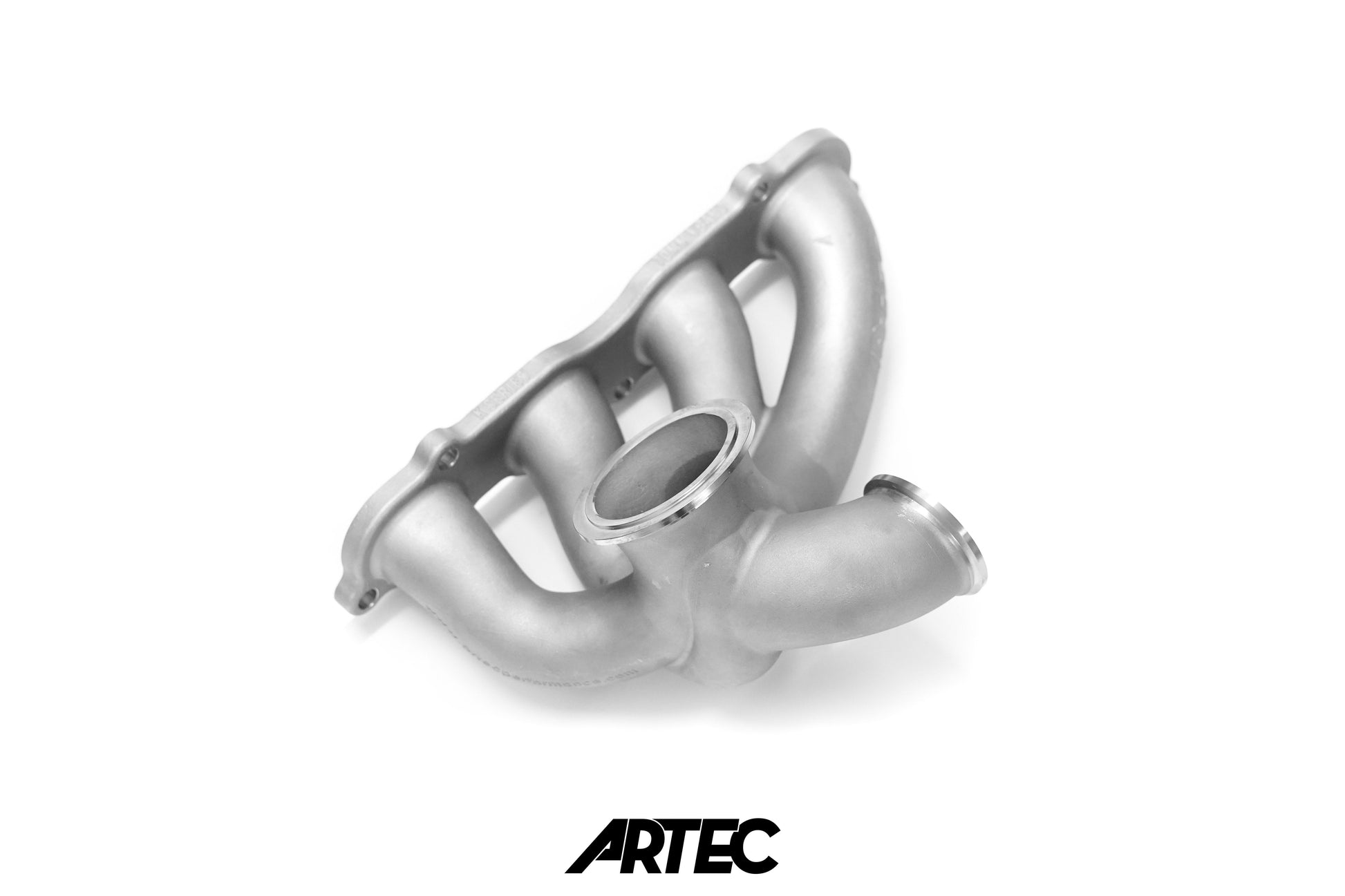

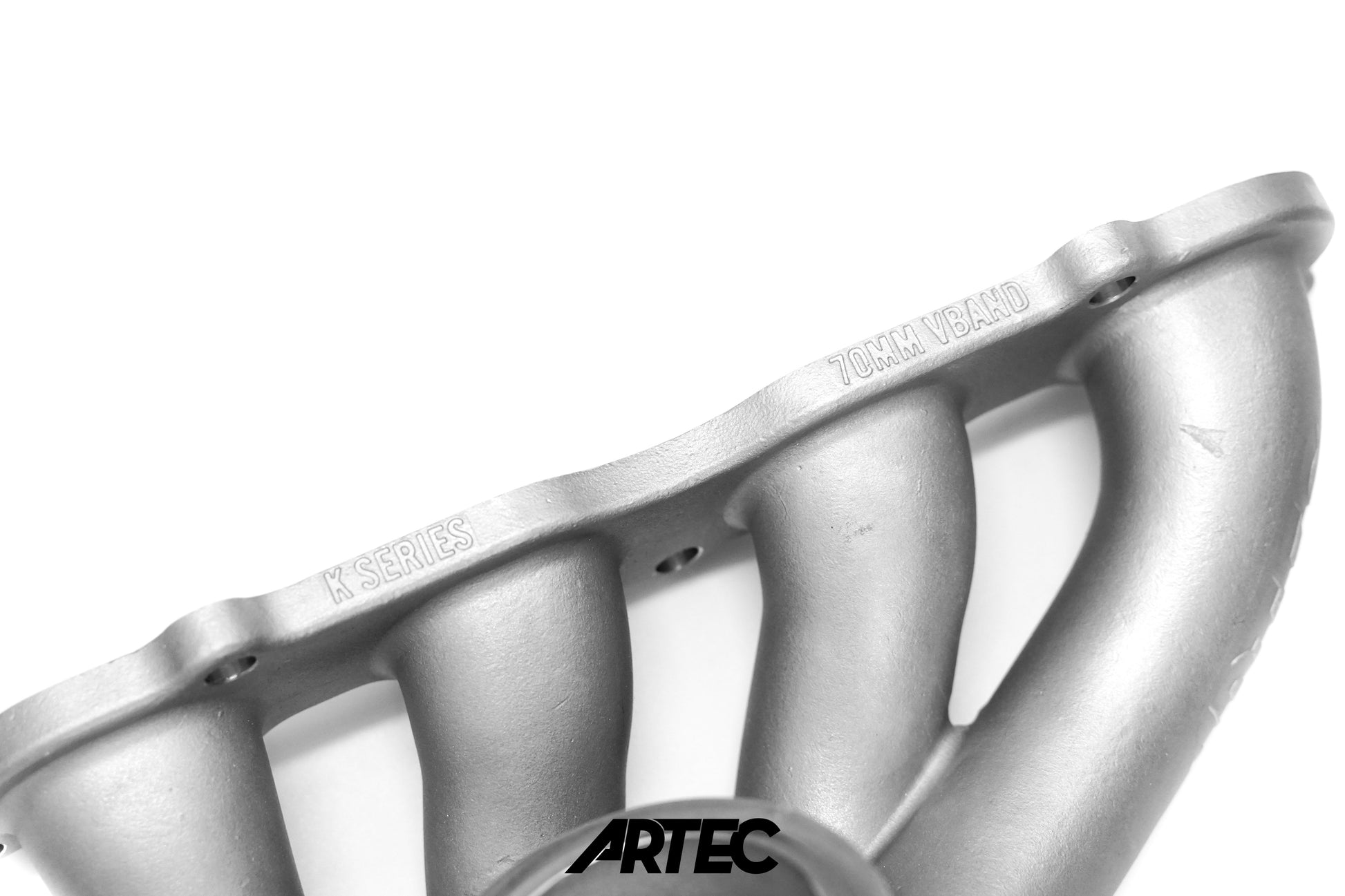

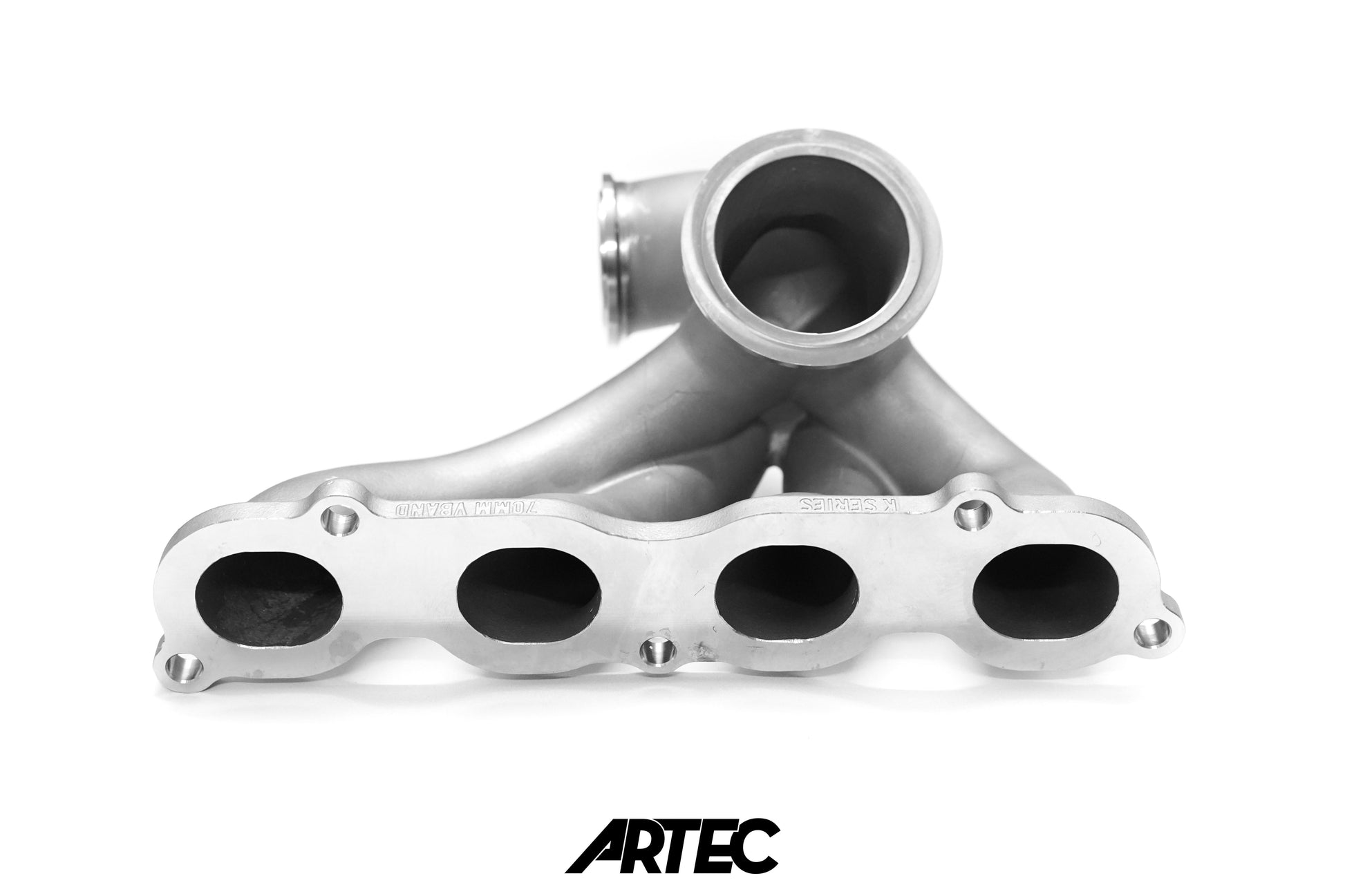

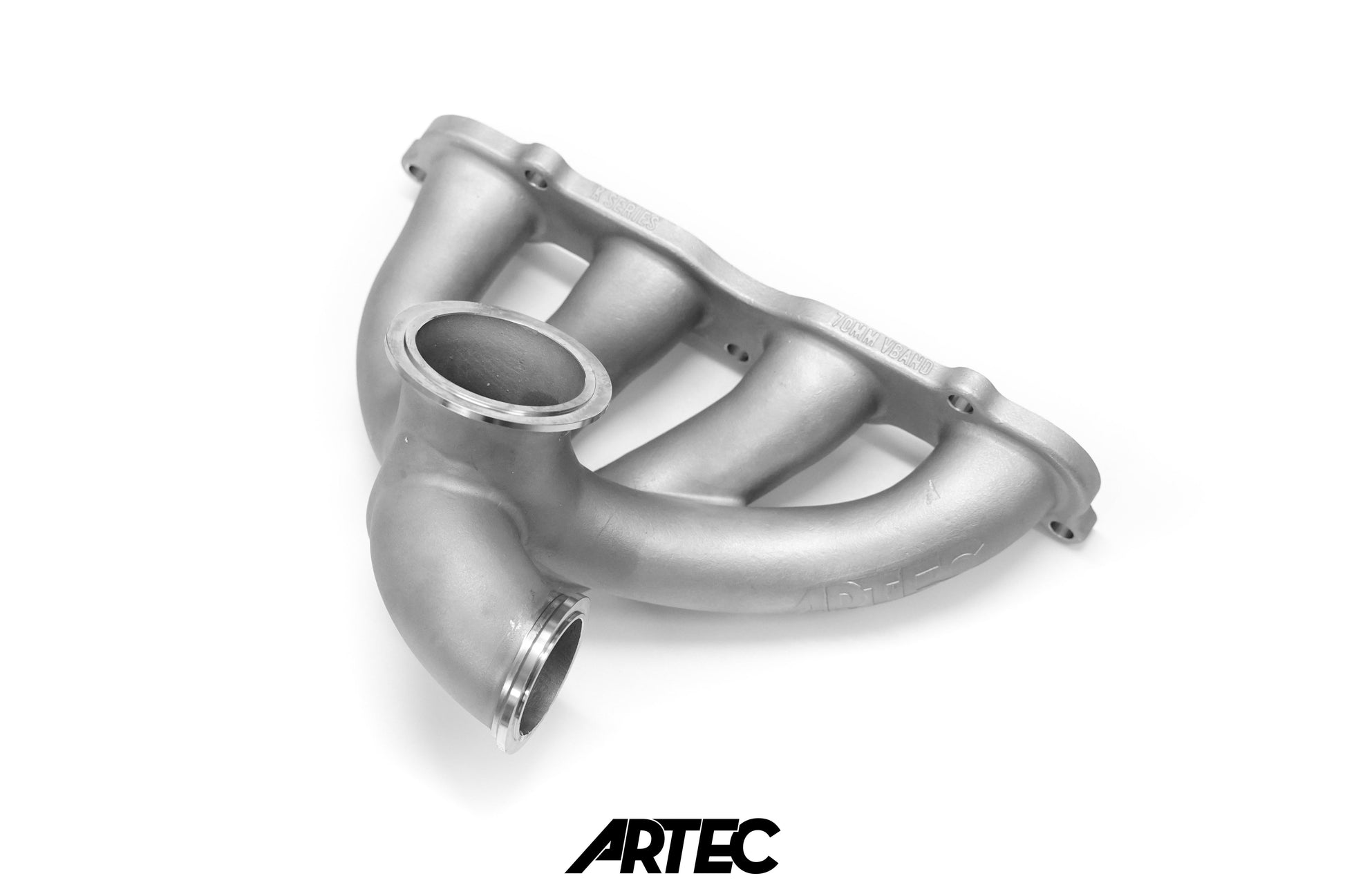

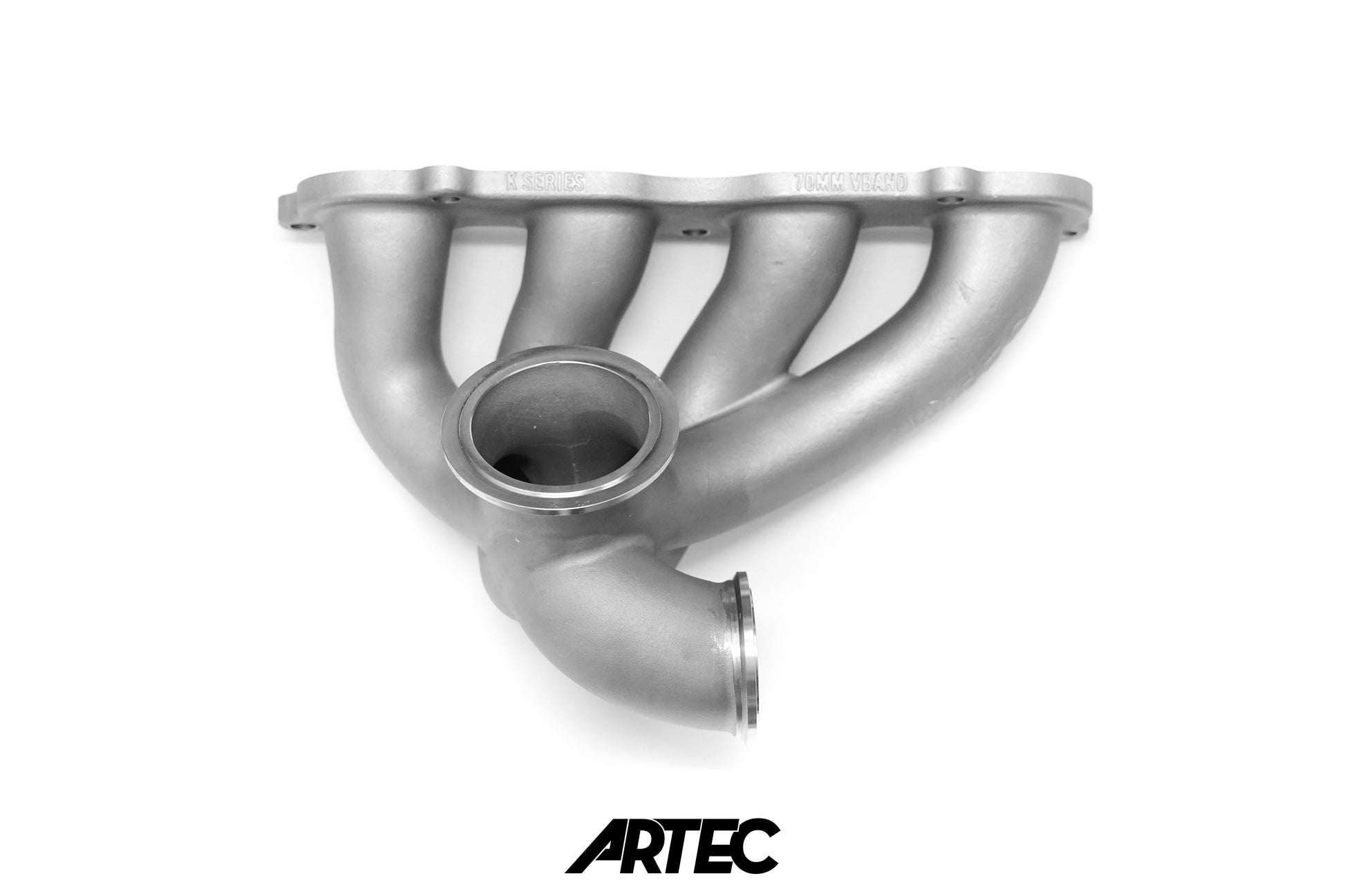

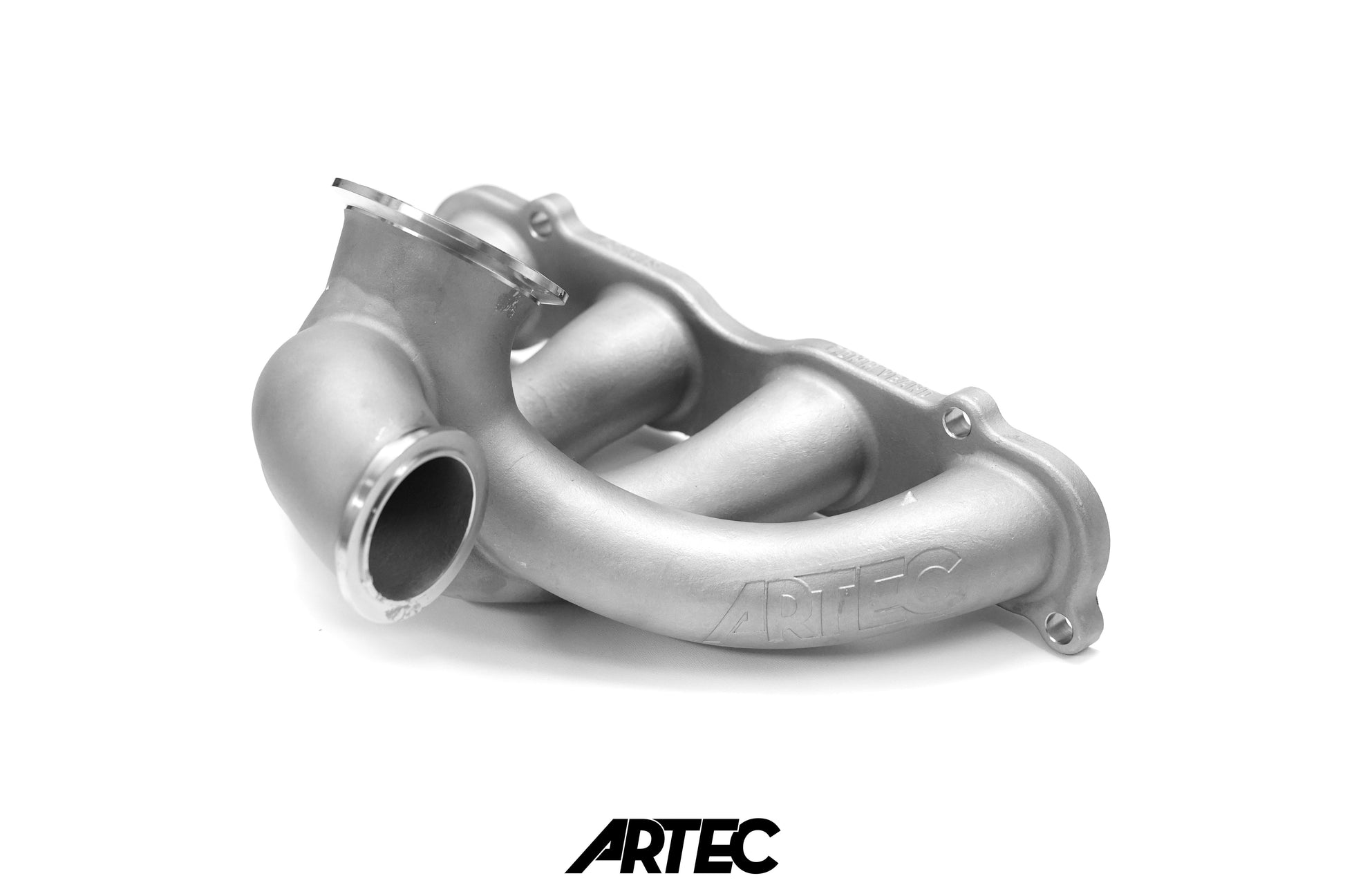

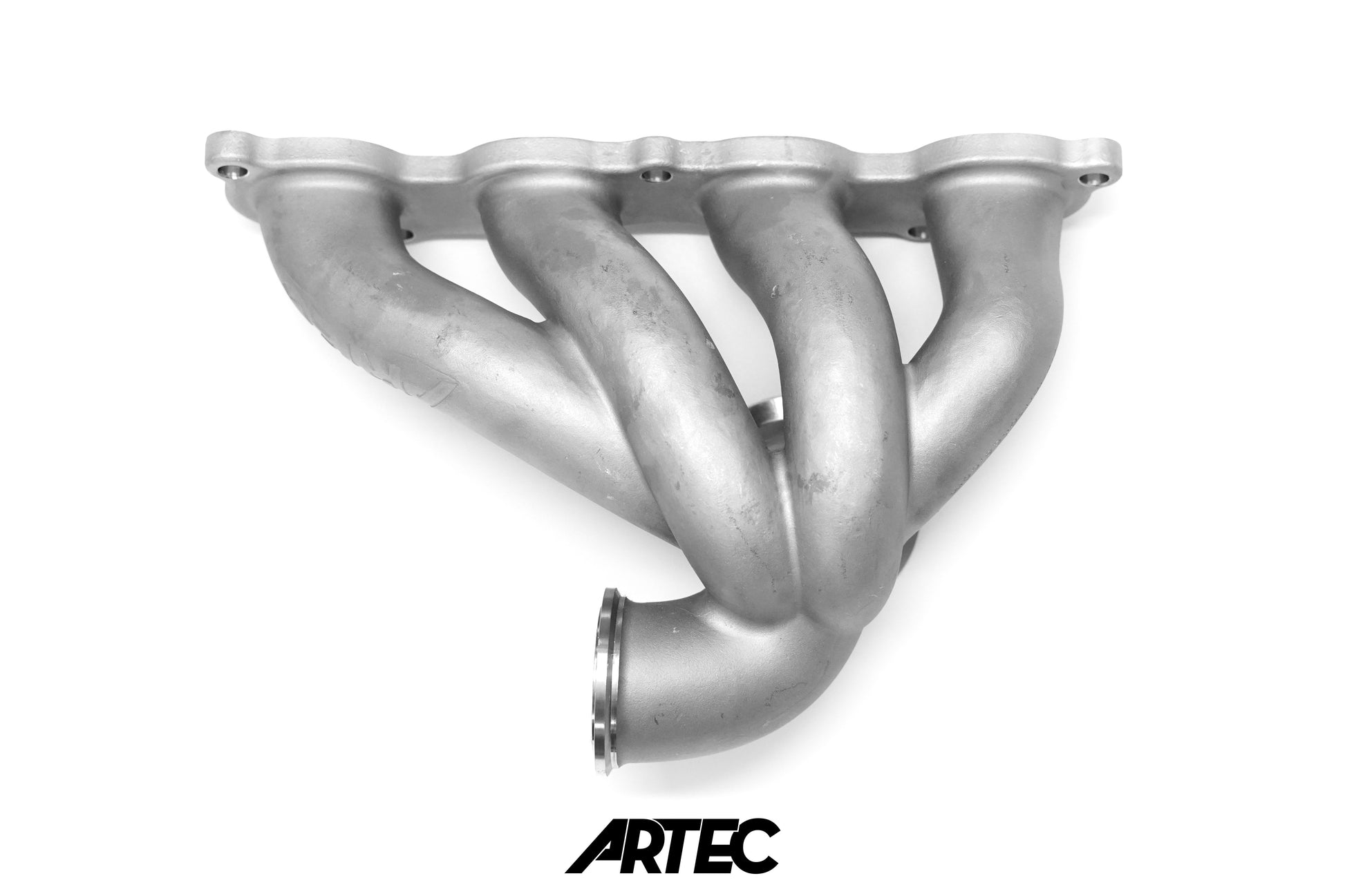

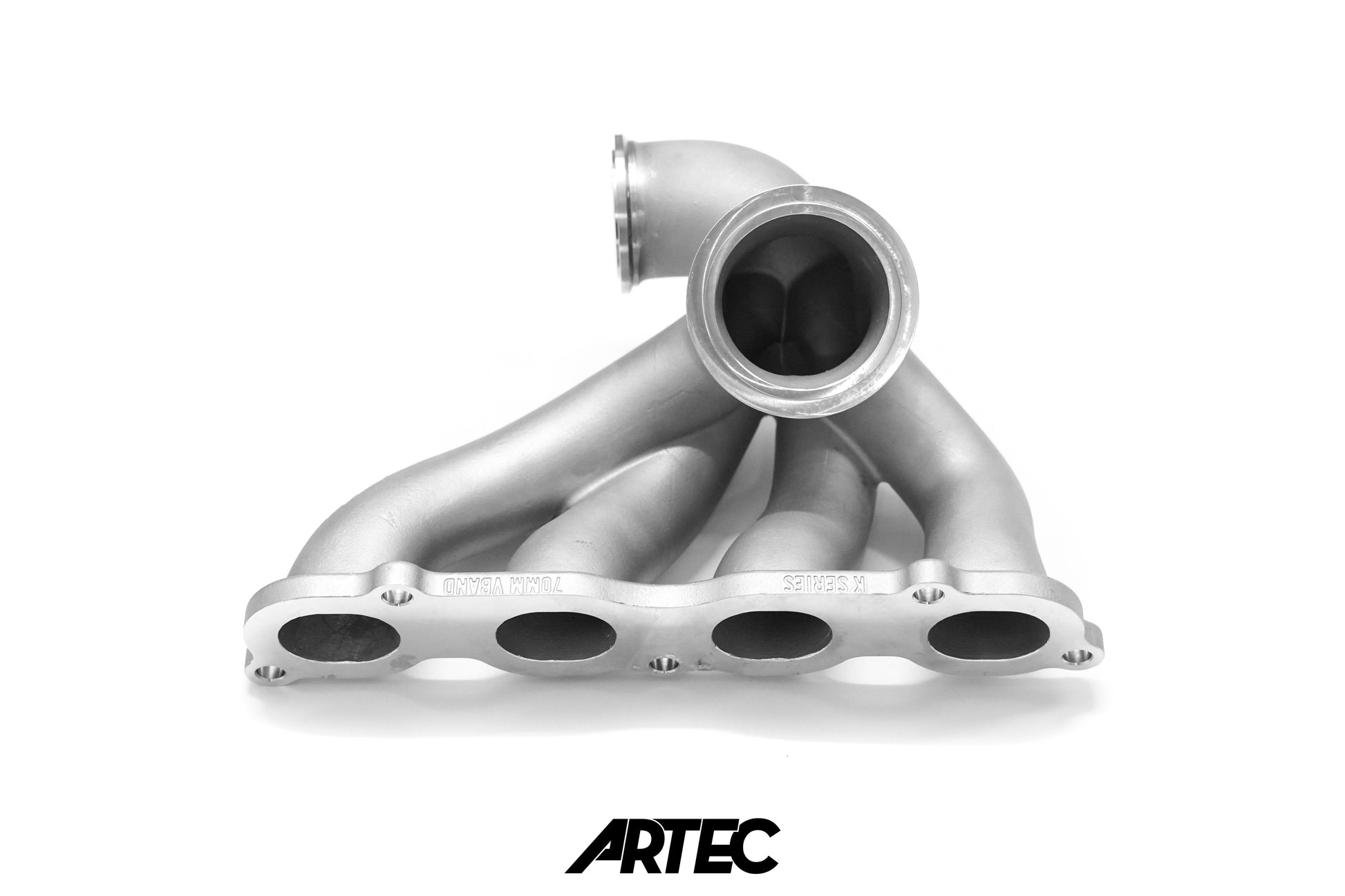

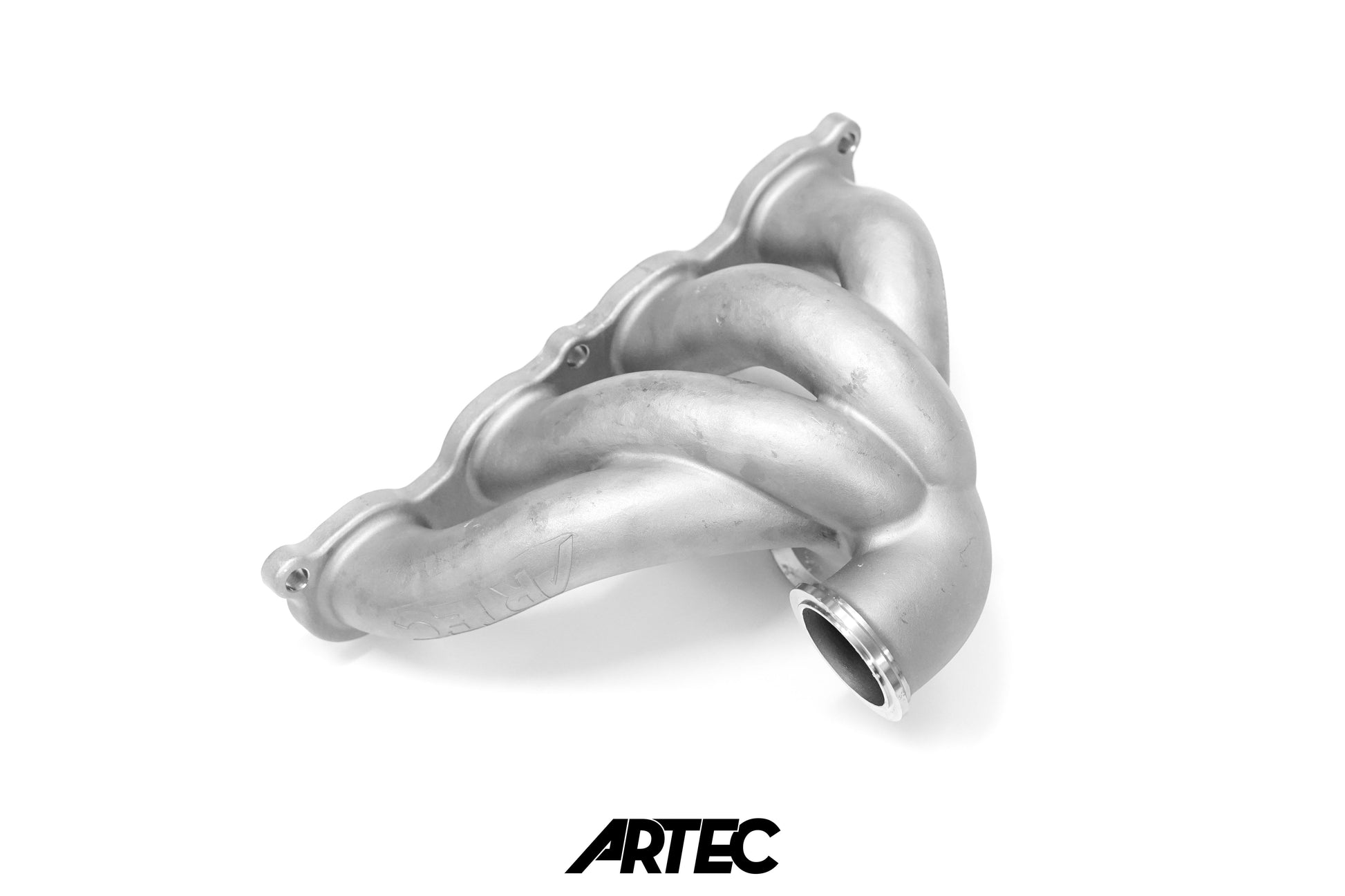

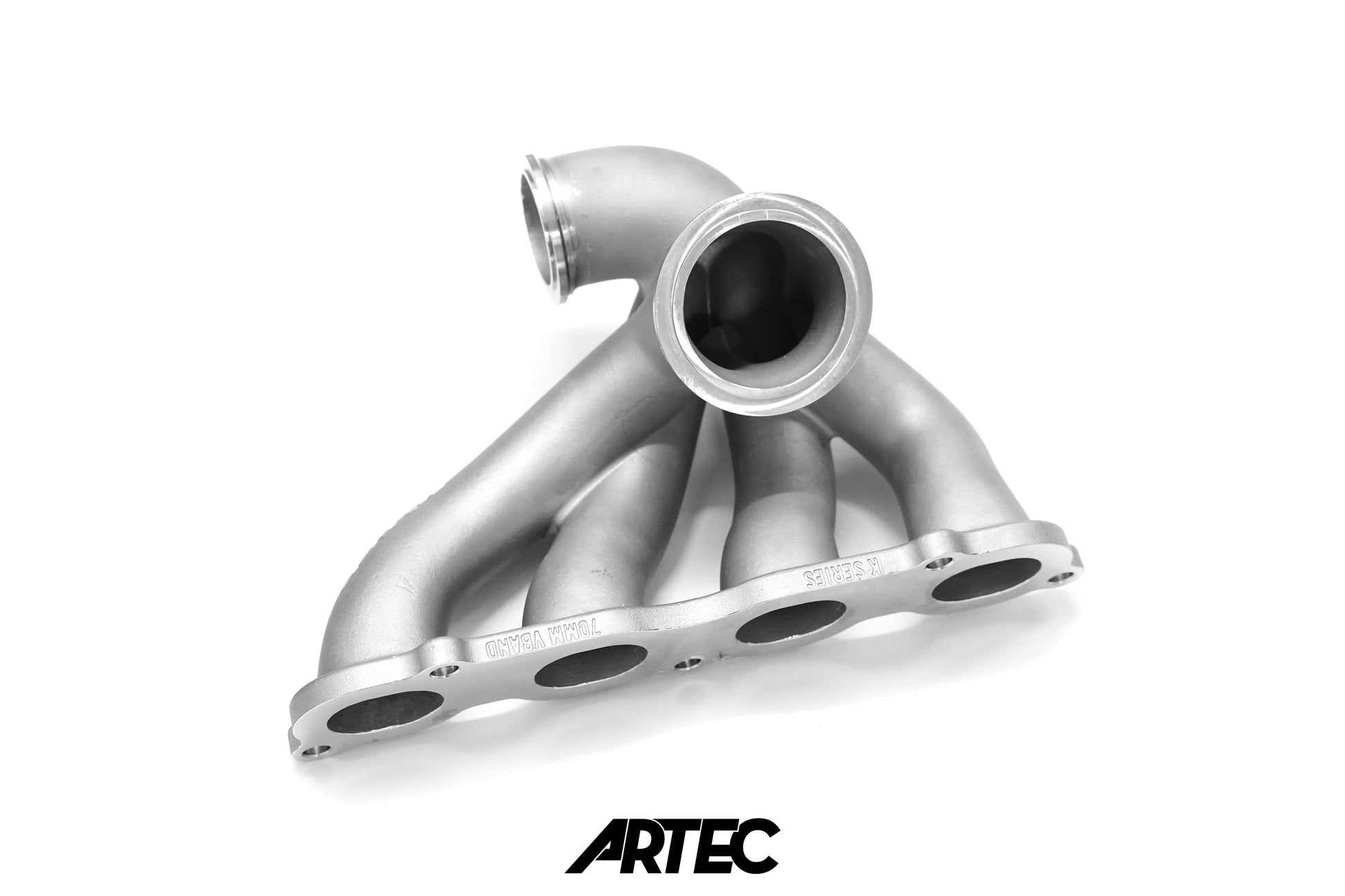

Honda K Series 70mm V-Band Exhaust Manifold

Honda K Series 70mm V-Band Exhaust Manifold

SKU:HONDAK-70MM-VBAND-EX

Regular price $1,240.00 USD
Regular price Sale price $1,240.00 USD
Sale Coming Soon
Shipping calculated at checkout.

Product Features

  • Industry leading SUS347 stainless steel investment cast exhaust manifold

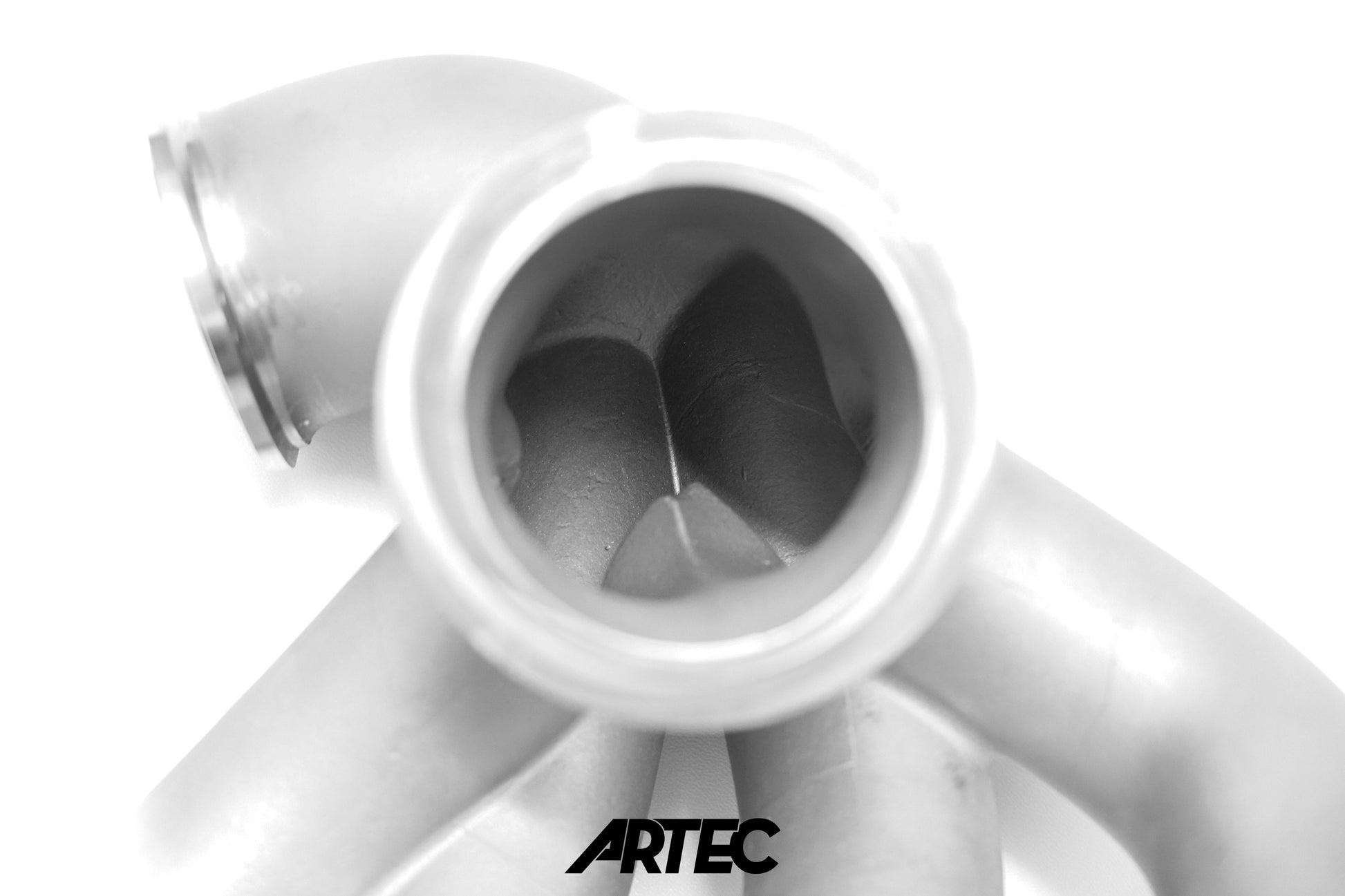

  • Cast stainless construction allows ARTEC manifolds to deliver superior flow and efficiency. Smoother merging angles can be achieved versus traditional manifolds, and tight radius bends and runners can also be eliminated which can cause restriction
  • Designed for easy fitment along with plenty of space and clearance for oil drains and servicing

Engine Compatibility

  • All Honda K20
  • All Honda K24

Chassis Compatibility

  • Originally designed around the Toyota W20 MR2
  • Confirmed fitment:
    • Honda EG Civic
    • Honda EK Civic
  • Please refer to the ARTEC Installation Gallery for fitment in other chassis

Turbocharger Compatibility

  • The ARTEC V-Band Ring System allows you to install turbos from all of the big brands without having to chop and change flanges or manifolds!
  • BIG DADDY MANIFOLD RANGE
  • Our ARTEC Big Daddy manifolds feature a 70mm V-band turbo flange and supports the following turbochargers by using the appropriate locating rings:
    • Garrett G40 to G45
    • Precision 6870 to 7675
  • NOTE: Designed to fit Garrett and Precision turbochargers, however turbochargers from other manufacturers may fit provided they use the same flange diameters and profiles

Wastegate Compatibility

  • Features a single 50mm wastegate flange
  • Installation of a 60mm wastegate is possible by cutting and welding a new flange
  • NOTE: Designed around Turbosmart, Precision and GFB wastegates, however wastegates from other manufacturers may fit provided they use the same flange diameters and profiles

Package Contents:

  • 1x Honda K Series 70mm V-Band Exhaust Manifold
  • 1x ARTEC V-Band Locating Ring for Garrett / Turbosmart
  • 1x ARTEC V-Band Locating Ring for Precision Turbo

Specifications:

  • Material: SUS347 Stainless Steel
